KSQstudio — Free PC Software for Your KSQ Constant Current Source

KSQstudio is Kirchner Galvanik's free PC software for the convenient control and monitoring of all KSQ12xx constant current sources. Using a simple serial RS232 connection – or, if needed, a standard USB-RS232 adapter – any KSQ unit can be operated directly from a PC, without additional hardware or license fees.

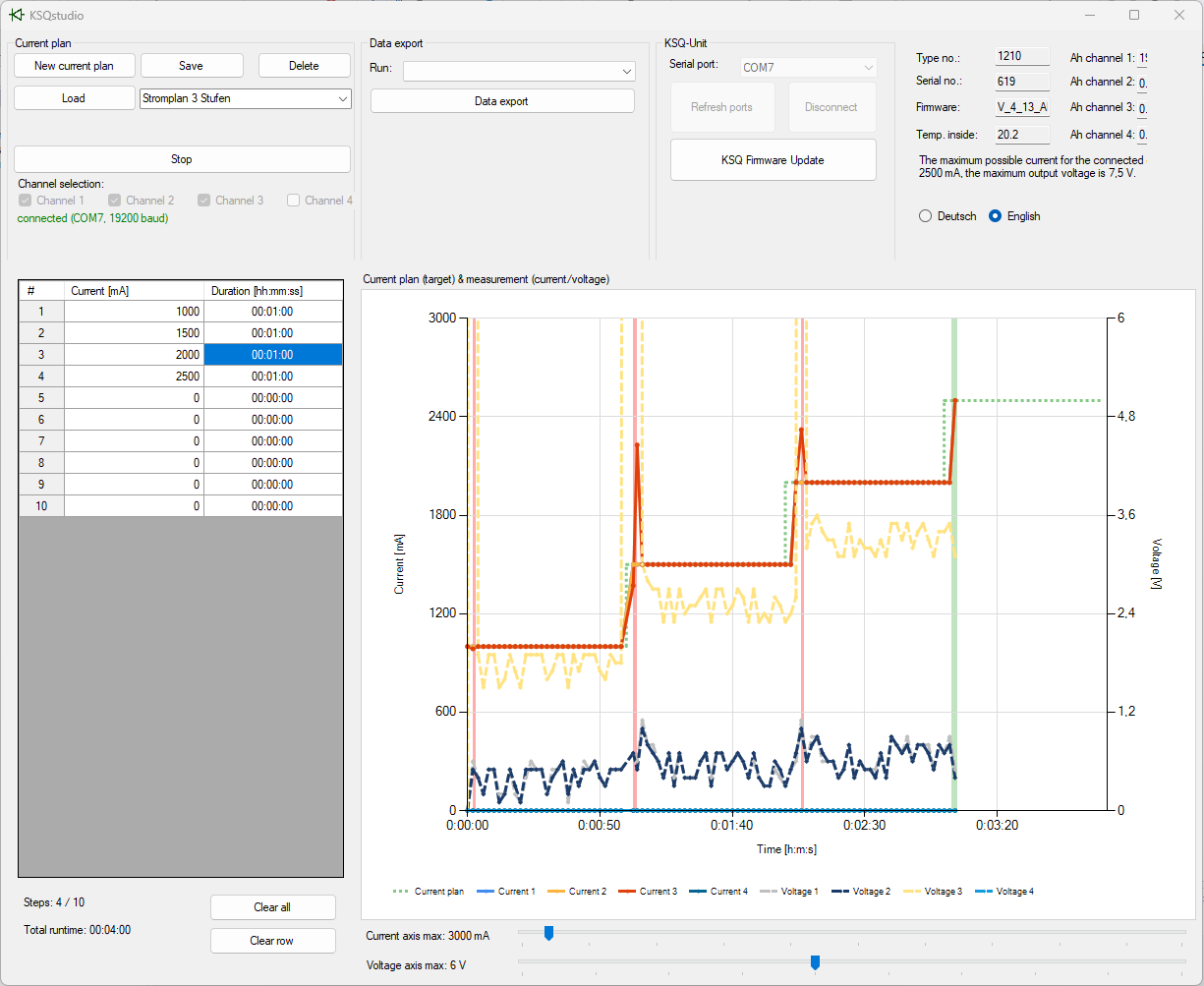

With the built-in current-plan designer, you can create individual current/time profiles with up to ten steps in just a few clicks, save an unlimited number of programs for recurring plating tasks, and start the desired sequence directly on the connected KSQ unit. A clear live chart displays both the target profile and the actually measured current and voltage values of all channels throughout the entire plating process, so you can reliably keep an eye on the process at all times.

KSQstudio automatically detects the connected device type and adapts the user interface accordingly: whether you are using a compact single-channel unit or a 4-channel KSQ, the software always shows exactly the relevant channels and the maximum current permitted for your device.

All recorded measurement data from a run can be exported at any time for documentation, traceability, and quality assurance. Firmware updates are just as straightforward: KSQstudio automatically checks in the background whether a newer firmware version is available for your device, downloads it if needed, and takes you straight into the built-in KSQ Updater.

Whether in the lab, in sample production, or on the shop floor: KSQstudio replaces manual operation at the unit with clear, PC-based control, saving valuable time on recurring plating tasks. Current programs you have created can be reloaded, adjusted, and run on multiple channels at any time, for reproducible results and complete documentation of every plating step.

KSQstudio is available as a free download to every owner of a KSQ12xx constant current source. Download the software today and experience how simple and reliable controlling your Kirchner rectifier can be from your own PC. If you have any questions, our team will be happy to help.
